Modle | ALL IN ONE-105/215KWH | ALL IN ONE-125/257KWH |
| DC Data | ||
| Cell Type | LFP | LFP |
Cell Cycle Life | 70% Retention with 8000 | 70% Retention with 10000 |
Cell | 3.2V/280Ah | 3.2V/314Ah |
Configuration | 1P240S | 1P256S |
Rated Power | 215.04KWh | 257.23KWh |
Rated Voltage | 768V | 819.2V |
| Voltage Range | 672~876V | 716.8~934.4V |
BMS Communication Port | RS485, Ethernet | RS485, Ethernet |
AC Data | ||
Rated Power | 105kW | 125kW |
Rated Voltage | 400V | 400V |
Rated Current | 144A | 174A |
Output THDi | ＜3% | ＜3% |
| AC PF | 0.1~1 Lead or lag (configurable) | 0.1~1 Lead or lag (configurable) |
| AC Output | three-phase four-wire+PE | three-phase four-wire+PE |
System Parameter | ||
IP Rating | IP54 | |
Dimensions(H*W*D) | 2301mm(H)*2007mm(W)*1175.8mm(D) | |
Noise | ≥60dB | |
Fire Fighting System | Aerosols, aerogels | |
Cooling Method | cooling | |
Optional Components | Perfluoroacetone (alternative aerosol), DCDC connector, UPS | |
| Weight | ≤2.3T | ≤2.8T |

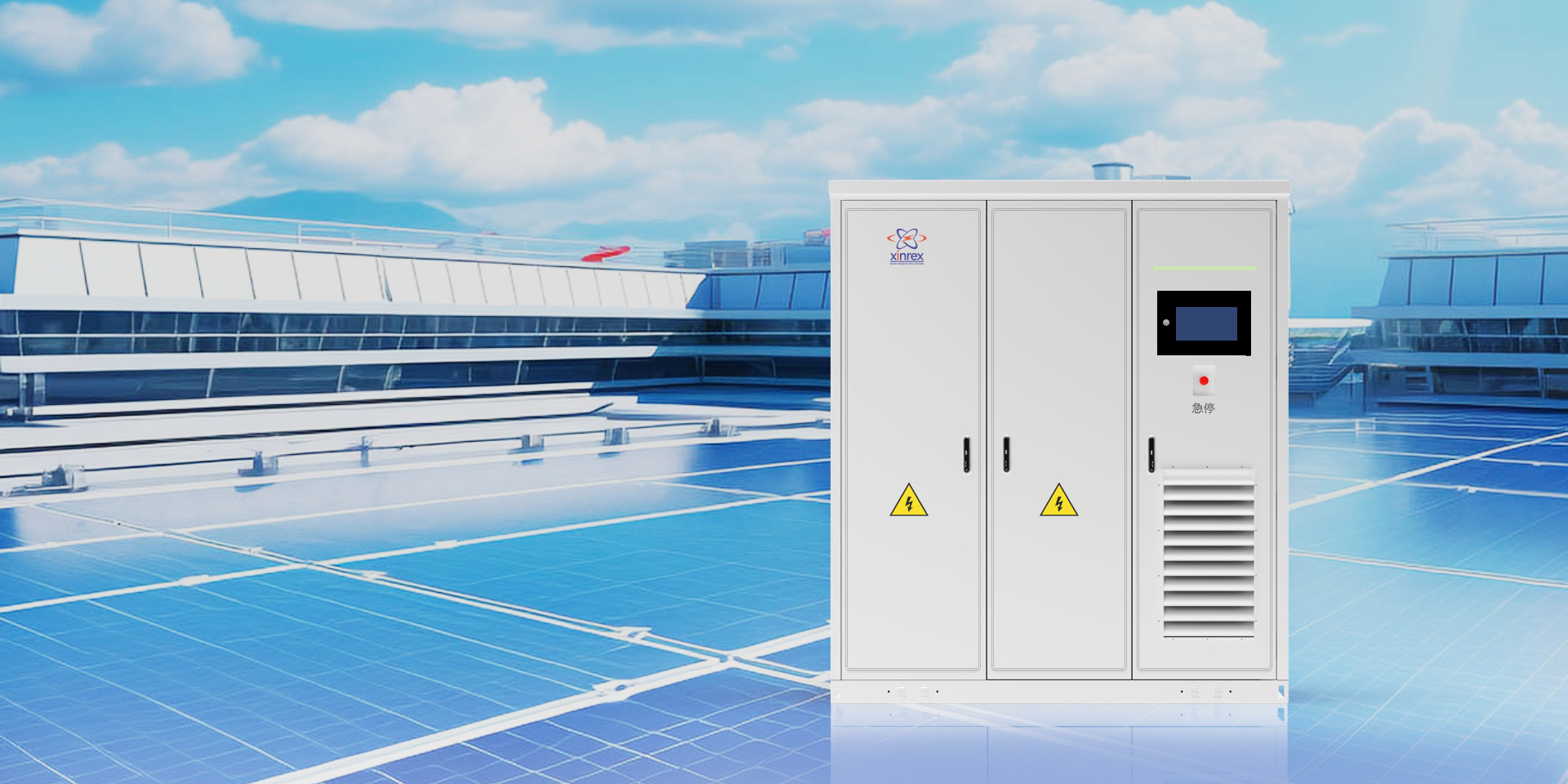

215~257Kwh Outdoor air-cooled converged cabinet
100 - 186kWh
Flexible/easy to install/compatible/fully qualified
