Modle | ALL IN ONE-100/153.6kWh | ALL IN ONE-50/53.76Wh | |
| Battery Type | Sodium ion (Na+) | Sodium ion (Na+) | |
| Rated energy | 153.6kWh | 53.76kWh | |
Nominal capacity | 200Ah | 70Ah | |
Discharge voltage | 512~1024V | 512~1024V | |
Charge voltage | 1040V | 1040V | |
Operating temperature | -40℃ ~ 60℃ | ||
Continuous charge current | 100A | 35A | |
| Peak charge current | 200A | 70A | |
Continuous discharge current | 100A | 50A | |
Peak discharge current | 200A | 70A | |
Rated discharge power | 75kW | 25kW | |
Maximum discharge power | 100kW | 50kW | |
IP protection level | IP54 | ||
Extensibility | Support parallel connection (refer to the user manual） | ||
| DOD | 100% | ||
| Lnstallation method | Floor | ||
Dimensions | 2301*2007*1175.8mm | 1373*1208*2007mm | |
Weight | |||
≤2.1t | ≤1.1t | ||
Authentication | UN, CE | ||
Communication protocol | CAN2.0 / RS485 | ||
Rated voltage | 768V | ||
Warranty | 5 Year | ||
Cycle life | >5000 | ||

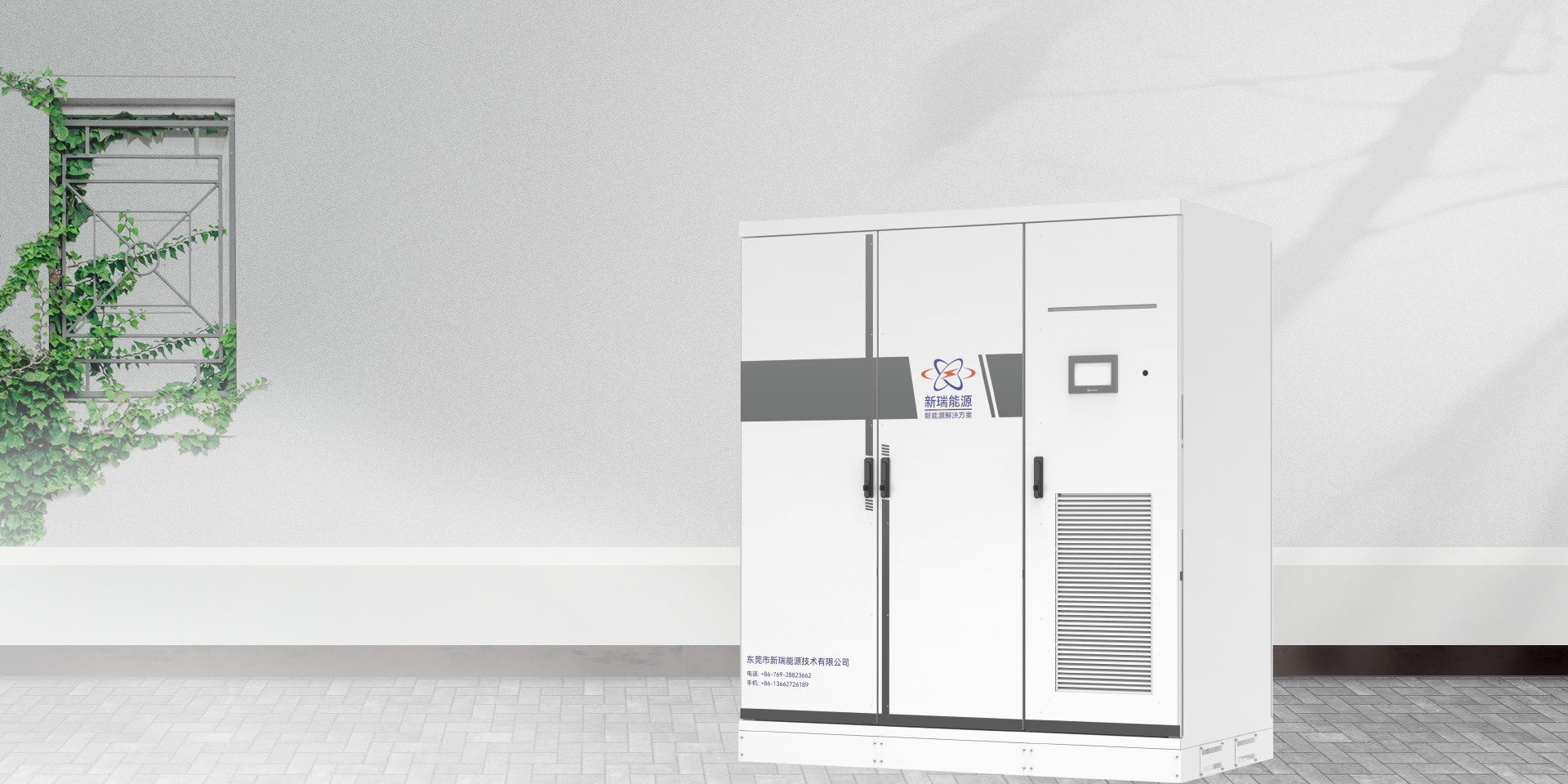

Commercial storage systems
Certified for safety performance such as UN38.3,CE, IEC62619 etc.
