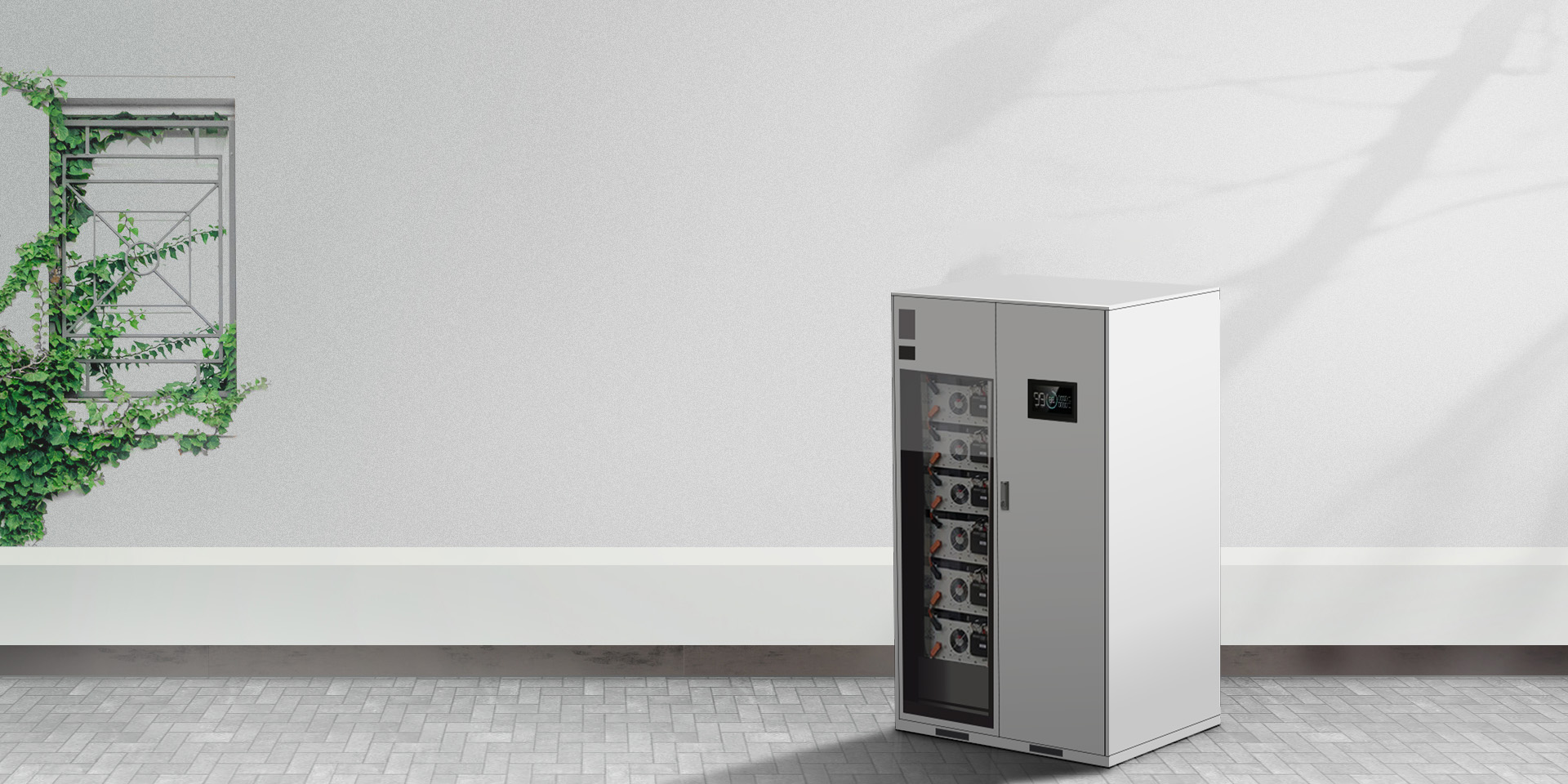

200~225kWh Indoor dc battery cabinet

An integrated storage system developed to meet the needs of the large storage market. Integrated battery cabinet, BMS, monitoring system, dedicated fire extinguishing system, HVAC, PCS and EMS. Suitable for thermal power plants, wind farms, solar farms or islands, schools, research institutes, factories, load centers, etc.

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

Comprehensive and multilevel battery protection strategies and troubleshooting measures are in place.

Various units can be easily combined to support power your business needs.

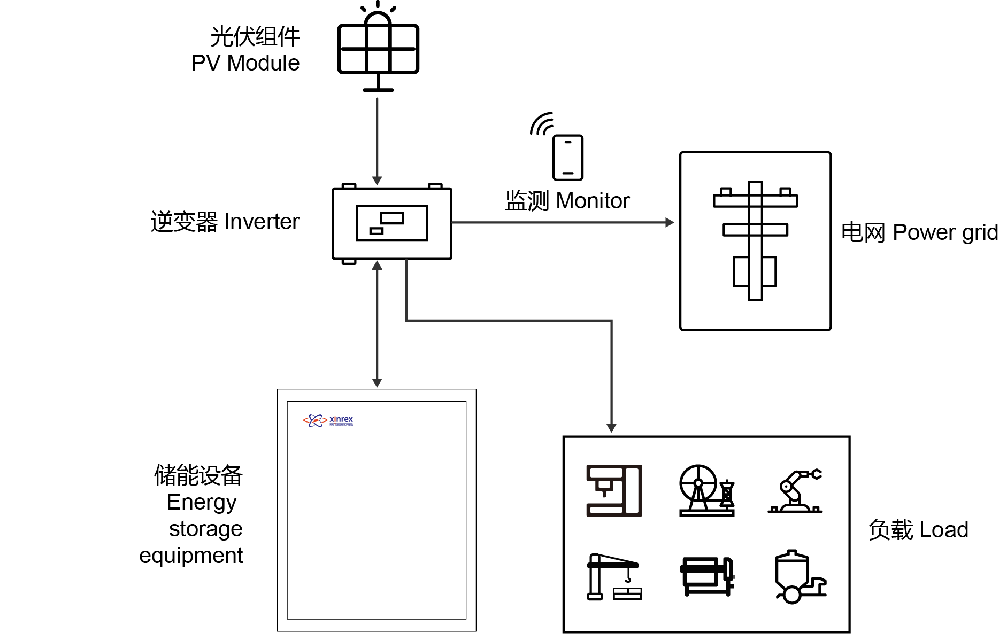

The container can be paired with photovoltaic / wind / electricity grid etc. It is a large multi-function intelligent battery storage station.

Low cost

which can reduce construction costs.

SPECIFICATION

Modle	CES-200kWh	CES-225kWh
Battery cabinet parameters
Nominal capacity	280Ah	314Ah
Rated voltage	716.8V	716.8V
Series and parallel numbers of box battery modules	1P16S*14	1P16S*14
Voltage range	627.2V~817.6V	6627.2V~817.6V
Rated energy	200.704kWh	225.07kWh
Maximum charge and discharge capacity	0.5C	0.5C
Dimension	12009802200mm	12009802200mm
Cycle life	≥6000 times	≥8000 times
Cooling method	Natural cooling	Natural cooling
Cabinet weight	≤1.8T	≤2.0T
Battery module parameters
Battery type	LFP
Rated voltage	51.2V
Cell capacity	314Ah
Series and parallel numbers of box battery modules	1P16S
Working voltage range	44.8V~58.4V
Dimension	480x700x230mm
Cycle life	≥8000 times
Battery weight	120kg

INDOOR DC BATTERY CABINET
