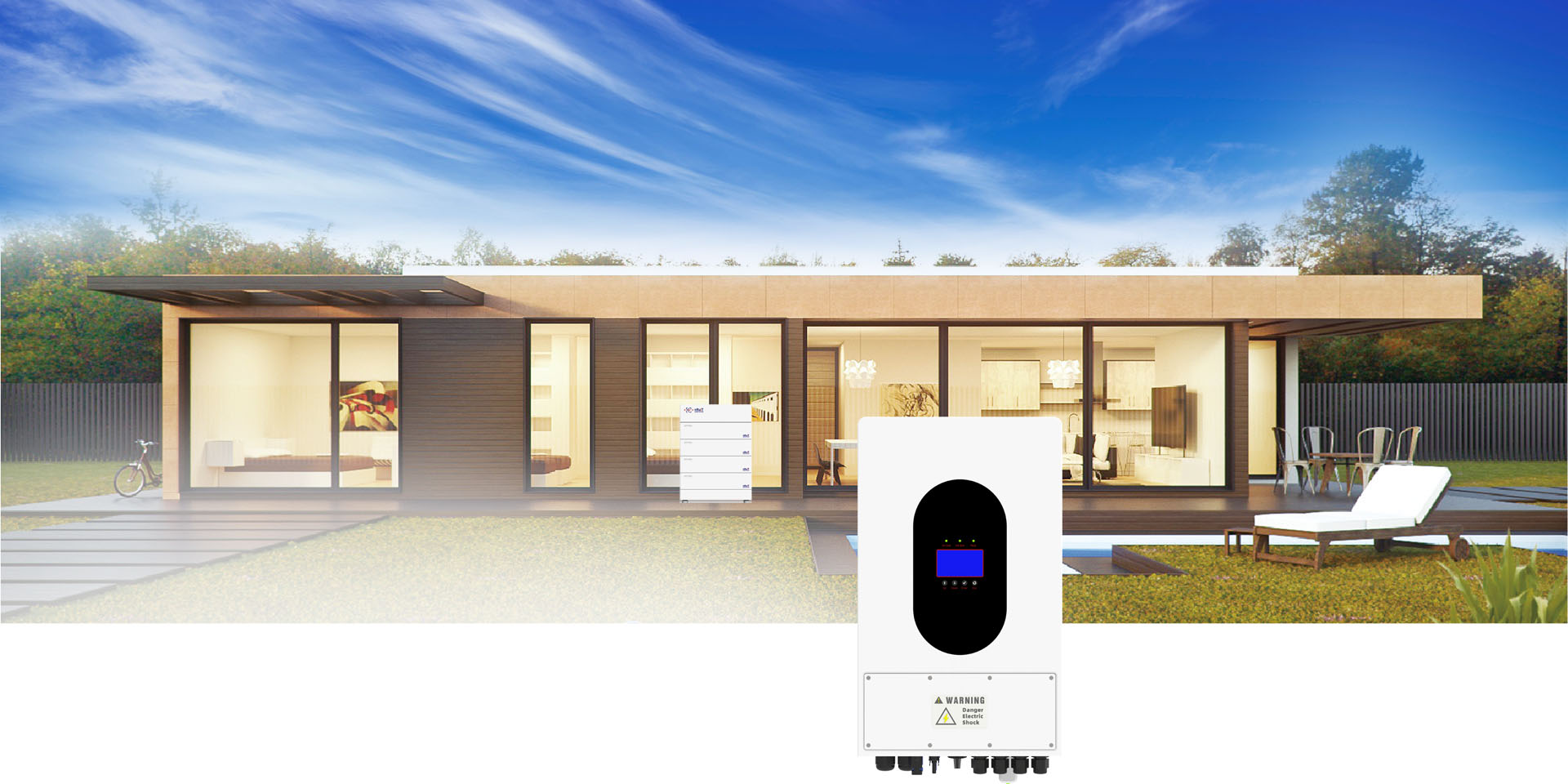

Single Phase Hybrid Inverter

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

Multiple modes

Modular design

Intelligence

Flexible configuration

High compatibility

High Compatibility

SPECIFICATION

Single Phase Hybrid Inverter

Model	GH3600TL	GH4600TL	GH5000TL
DC data
Maximum PV Input power	5.2KW	6.5KW	7KW
Maximum DC voltage	500V
Starting voltage	150V
Rated voltage	360V
MPPT operating voltage range	120V~430V
Number of mppts	2
Maximum short-circuit current per MPPT	18.9A
Maximum Input current per MPPT	15A
Battery data
Battery type	Lithium-Ion / Lead-acid batteries
Operating voltage range	41.6V~58.5V
Maximum charge/discharge current	80A/85A	95A/100A
Exchange data
Rating	3.6KW	4.6KW	5KW
Max. apparent power	3960VA	4600VA	5500VA
Rated voltage (range)	230V
Rated frequency (range)	50Hz/60Hz
Max. output current	17.2A	22A	23.9A
Power factor	0.8 Ahead~0.8 Behind
Common data
Dimensions	350580230 mm
Total weight	25kg
IP protection level	IP65
Range of working temperature	-40℃~60℃
Relative humidity	0-95% No condensation
Maximum working altitude	> 2000m
Cooling method	Natural cooling
