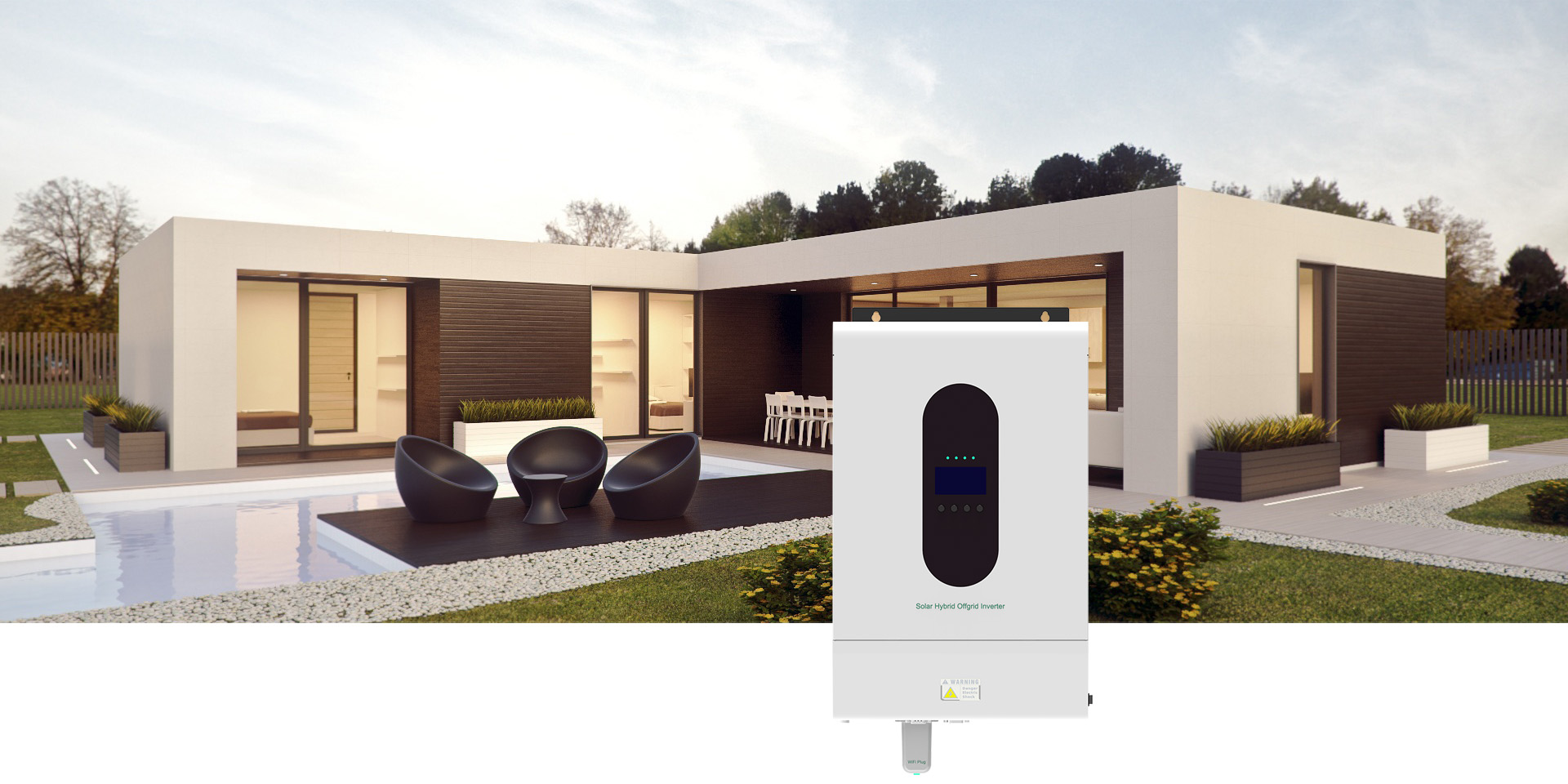

Single phase off-grid inverter

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

Multiple operating modes

off-grid and UPS

MPPT charger built-in.

Compatible with almost all 48V LiFePO4 battery pack.

Integrated smart APP

can remotely diagnose and update.

SPECIFICATION

Single phase off-grid inverter CE

Model	OH3600TL	OH5000TL	OH5500TL
Lnverter output
Rated output power	3.6KW	5KW	5.5KW
Max. peak power	7.2KW	10KW	11KW
Rated output voltage	230Vac (Single phase)
Rated output frequency	50/60Hz
Battery data
Battery type	Lithium-Ion battery / Lead-acid battery / User-defined
Rated battery voltage	24Vdc	48Vdc
Max. PV MPPT charge current	100A	80A	100A
Exchange data
Maximum photovoltaic Input power	5KW	6KW
Maximum Input current	18A	27A
Max. PV open circuit voltage	500Vdc
MPPT voltage range	40~450Vdc	120~430Vdc
Input voltage range	170~264V
Frequency range	50/60Hz
Bypass over-load current	20A	40A
Common data
Dimensions	28441792 mm	300485120 mm
Weight	8.5kg	9.5kg
IP protection level	IP20
Range of working temperature	-10~50℃,Derating>40℃
Noise	<60db>
Cooling method	Lntelligent air cooling
