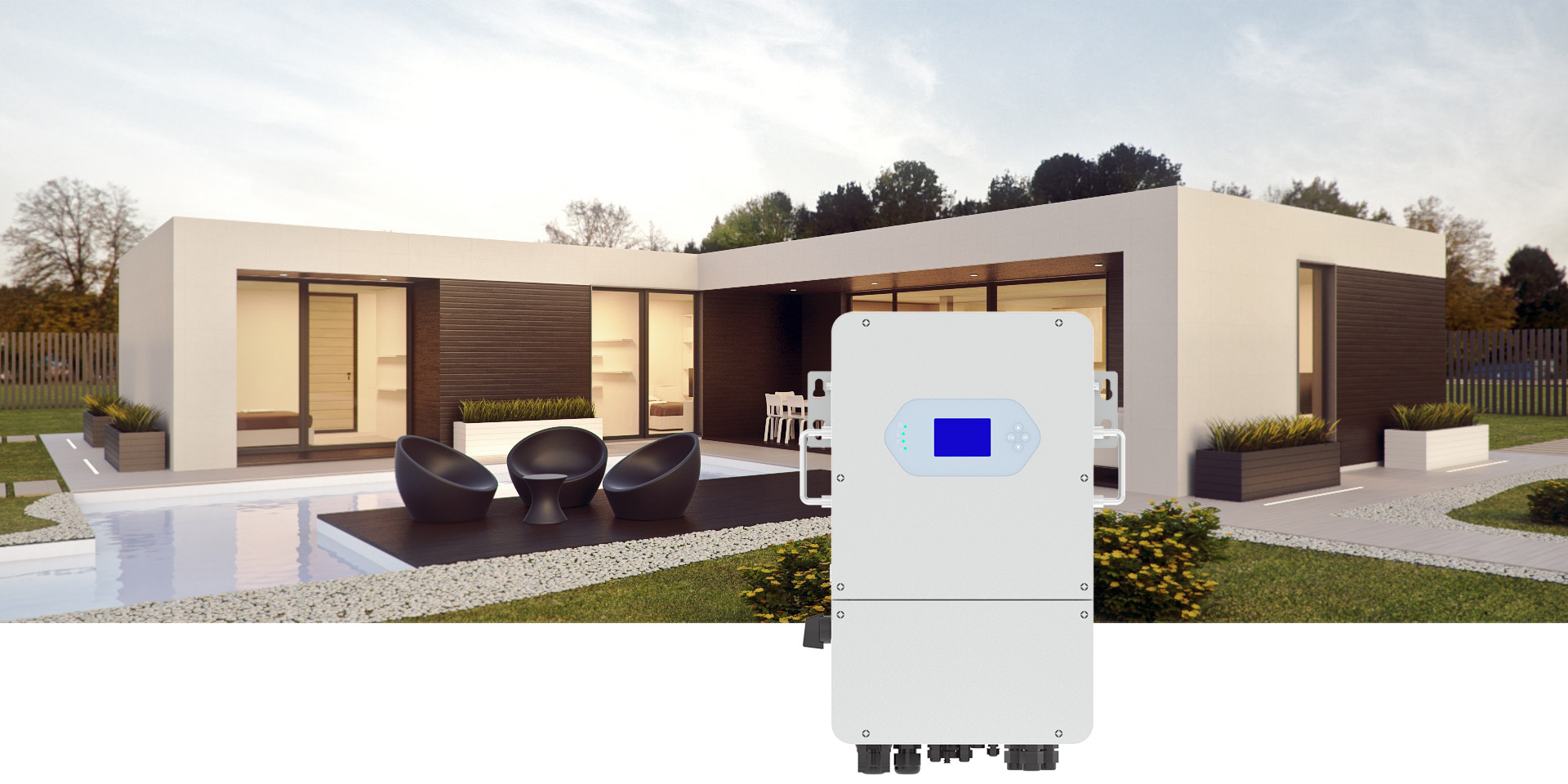

3 Phase Inverter On-Grid/Off-Grid Hybrid Energy Storage

G8K-10K-12K-P3LA

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

Maximum charge/discharge current:240A.

48V low-voltage battery with integrated transformer for safety isolation.

Frequency droop control

supporting parallel operation of up to 10 units.

AC-coupled compatibility for retrofitting existing solar systems

100% three-phase unbalanced output

with each phase capable of delivering up to 50% of rated power.

SPECIFICATION

Single phase hybrid inverter

Model	G8K-P3LA	G10K-P3LA	G12K-P3LA
DC data
Maximum PV Input power	10.4KW	13KW	15.6KW
Maximum DC voltage	800V
Starting voltage	160V
Rated voltage	550V（160~800V）
MPPT operating voltage range	200V ~650V
Number of MPPTs	2
Max. Input current of each MPPT	13A+13A	26A+13A
Max. short-circuit current of each MPPT	17A+17A	34A+17A
Battery data
Battery type	Lithium-ion battery / Lead-acid battery
Operating voltage range	40V~60V
Max. charge and discharge current	160A/160A	200A/200A	240A/240A
Exchange data
Rated power	8KW	10KW	12KW
Max. apparent power	8800VA	11000VA	13200VA
Rated voltage	220/380Vac,230/400Vac (Three-phase)
Rated frequency	50Hz/60Hz
Max. output current	45A
Power factor	0.8 Leading~0.8 lagging
Common data
Dimensions	422702281 mm
Weight	37.5kg
IP protection level	IP65
Range of working temperature	-40-60℃,>45℃ derating
Relative humidity	10-90%
Maximum working altitude	2000m
Cooling method	Smart cooling
